Home design

Crescent

The Crescent design is a solid and sophisticated family home set over two levels that is suitable for narrow lot sizes. The lower level of the home is cleverly designed to accommodate family living with the entertaining zone including living, dining, kitchen and alfresco commanding most of the floor space. The lower level also includes a study zone which is perfect for those that work from home or if the kids need to get their homework done while the evening meal is being prepared nearby. The upstairs level feature four bedrooms, with the master retreat with ensuite and walk-in-robe is situated cleverly at one end of the home, with the remaining bedrooms are at the other separated by the study and lounge media spaces. The flow of the home is seamless, creating an excellent lifestyle for large families that love to entertain and spend time enjoying each others companies. The double lock up garage, additional storage and the abundance of natural light make this home practical and welcoming.

If you are looking for a large family home that suits a narrow block and maximises the available space then this is the home for you.

Your Design

Designed to suit a 12.5m wide block or larger

House Dimensions

Total Area:280.6m²

House Length:16.79m

House Width:10.55m

Alfresco Area:17.5m²

Your inclusions

Standard Design

Included

Kitchen

Benchtop – 20mm stone selection from YDL – BDH range.
Doors – laminate selection with soft close hardware to doors and drawers.
Overhead cabinetry with plasterboard bulkhead above base cabinetry interior – white melamine.
Pantry – four (4) melamine shelves with flush panel door as per working drawings.
Sink – Undermount Artusi Coventry Double Bowl with Alder Gooseneck Wish2 sink mixer.

Appliances

Oven – Artusi AO650X.
Electric Cooktop – Artusi CAID646B / Gas Cooktop – Artusi AGH65X
Rangehood – Artusi ACH900X.

Bathroom & Ensuite

Fienza Empire back to wall suite – white.
Tiled shower to ensuite and bathroom, both with semi-framed shower screens, Fienza Low-Profile Semi Inset basin to ensuite, bathroom and powder room where applicable.
Raymor Projix inset bath to bathroom as per working drawings.
Custom-built laminated vanity units with melamine interior and post formed vanity tops, polished edge mirrors as per working drawings.
Alder Wish2 mixer range tapware (chrome, black and brushed nickel), Alder Eco Dual Lite Rain Shower on rail in ensuite – chrome.
Alder Fresco shower rail in bathroom (chrome, black and brushed nickel).
Alder Wish bathroom accessories.
Tile insert floor wastes.

Interior

Powder coated aluminium-framed windows and sliding doors including locks and flyscreens with fibreglass mesh. Colours from Wideline BDH range.
Sectional overhead garage door with automatic operation including two (2) remote handsets and one (1) wall mounted handset.
Aluminium sliding door to rear as per working drawings.
Electrical as per the detailed drawings with earth leakage safety switch, miniature circuit breakers to metre box, smoke detectors, one (1) phone point and two (2) TV points, exhaust fan to bathroom and ensuite, and a television aerial including booster.
Internal paint colours from Haymes BDH range with three (3) coats applied to the walls and two (2) coats applied to the ceilings.
Sisalation to external timber framed walls.
Sarking to roof. R2.5 fibreglass baits insulation to living area ceilings (excluding eaves) R2.0 fibreglass batts to all external timber framed walls.
Carpeted and paint grade stairs, handrail and stringers with standard gyprock wall balustrade.
Vinyl – plank flooring to the common areas from the DBH standard range.
Tiles – tiles to common & wet areas from the BDH standard range.
Carpet – carpet from the BDH standard range to all bedrooms, WIR’s, media or as per working drawings.
Front – Wideline range.
Laundry – aluminium sliding door with lock.
Internal – Hume Honeycomb Flush Panel.
Door furniture – Lockwood 55mm / 63mm Velocity range with privacy locks to the master bedroom, WC, bathroom and powder room where applicable.
Four (4) shelves of white melamine to the linen and pantry and one (1) shelf of white melamine with single hanging rail to robes.

Laundry

Laminate cabinet with drop-in Artusi Kent stainless steel trough 37.5 litre with Alder Wish2 Gooseneck mixer (cabinet size varies by house type with washing machine tapware and electrical within the cupboard).

Exterior

Termite penetrations and perimeter system to AS 3660.1.
Clay bricks selected from Austral Bricks BDH range.
BDH standard range letterbox, powder coated wall mounted foldaway clothesline.
Grey concrete driveway up to 45m².
26 litre gas instantaneous hot water system or 250 electric storage with electric cooktop.
Tiles to portico in BDH standard range.

Structural

Termite resistant treated frame and roof trusses.
Class “M” reinforced concrete slab (to BDH engineers design), to the lower living areas, garage, alfresco and portico.
500mm of fall over building platform.
Two (2) yard gully traps, two (2) external hose cocks.
Construction insurance, standard plumbing and drainage fees and 3,000L poly water tank supplied and installed to BASIX requirements.

Pre-Construction

Sewer and stormwater connection to within 6m of connection point & depth up to 1.5m.
Single Phase 16mm underground power & water connection to within 6m of connection point.

Energy Efficiency

4kW Solar System

Roof

Concrete roof tiles selected from the Bristile BDH range including roof sarking.

Select Facade

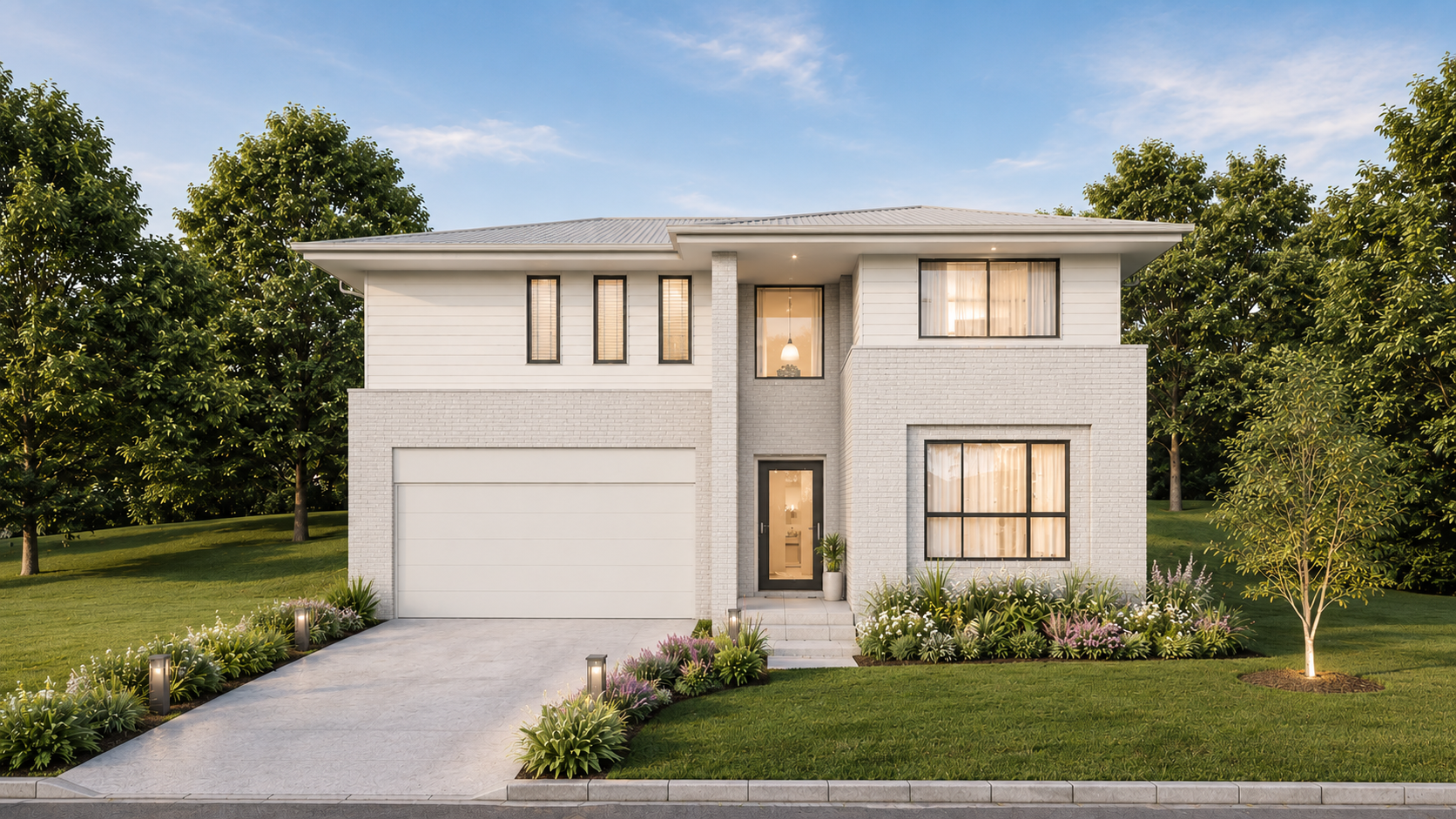

Leanda

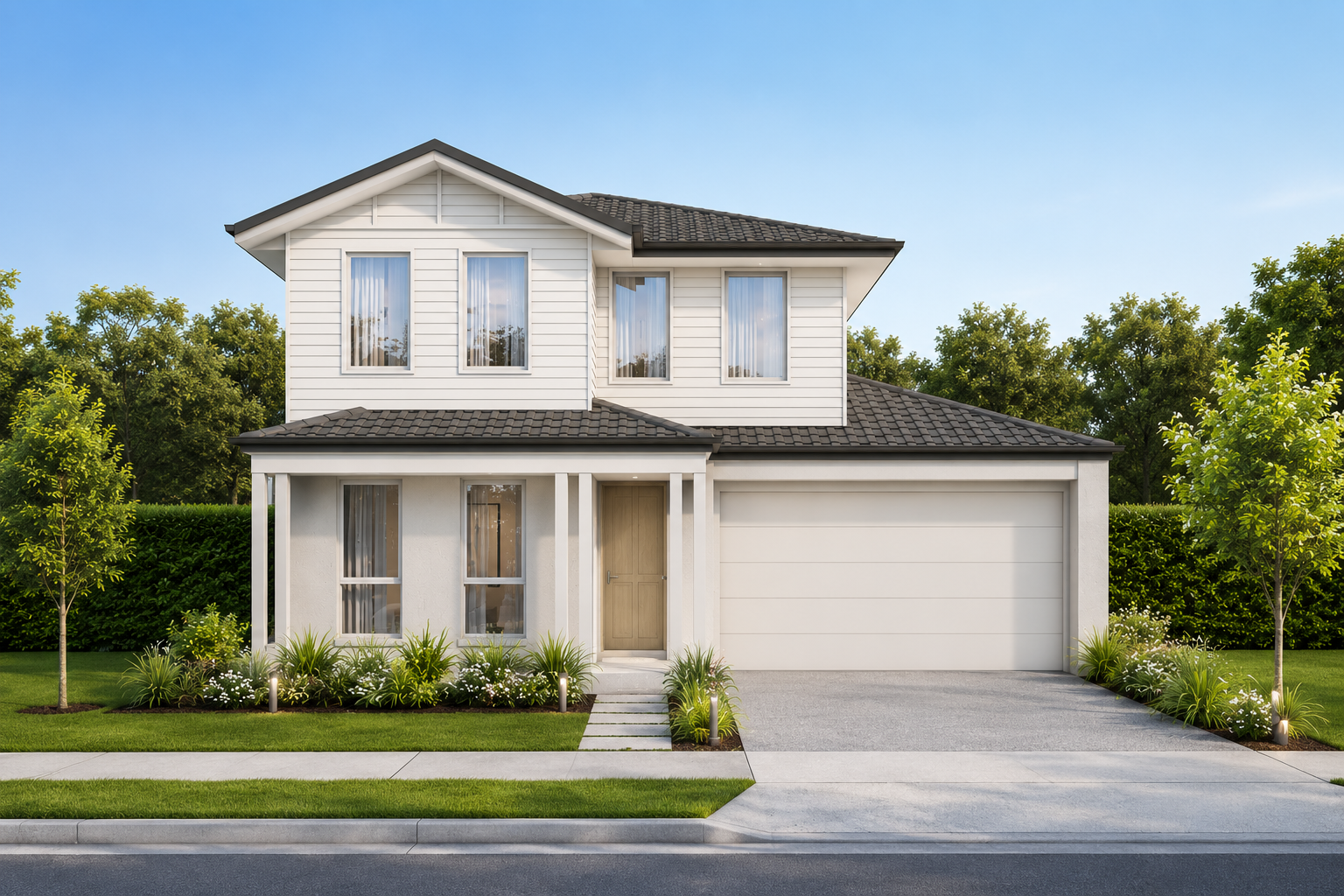

Pacific

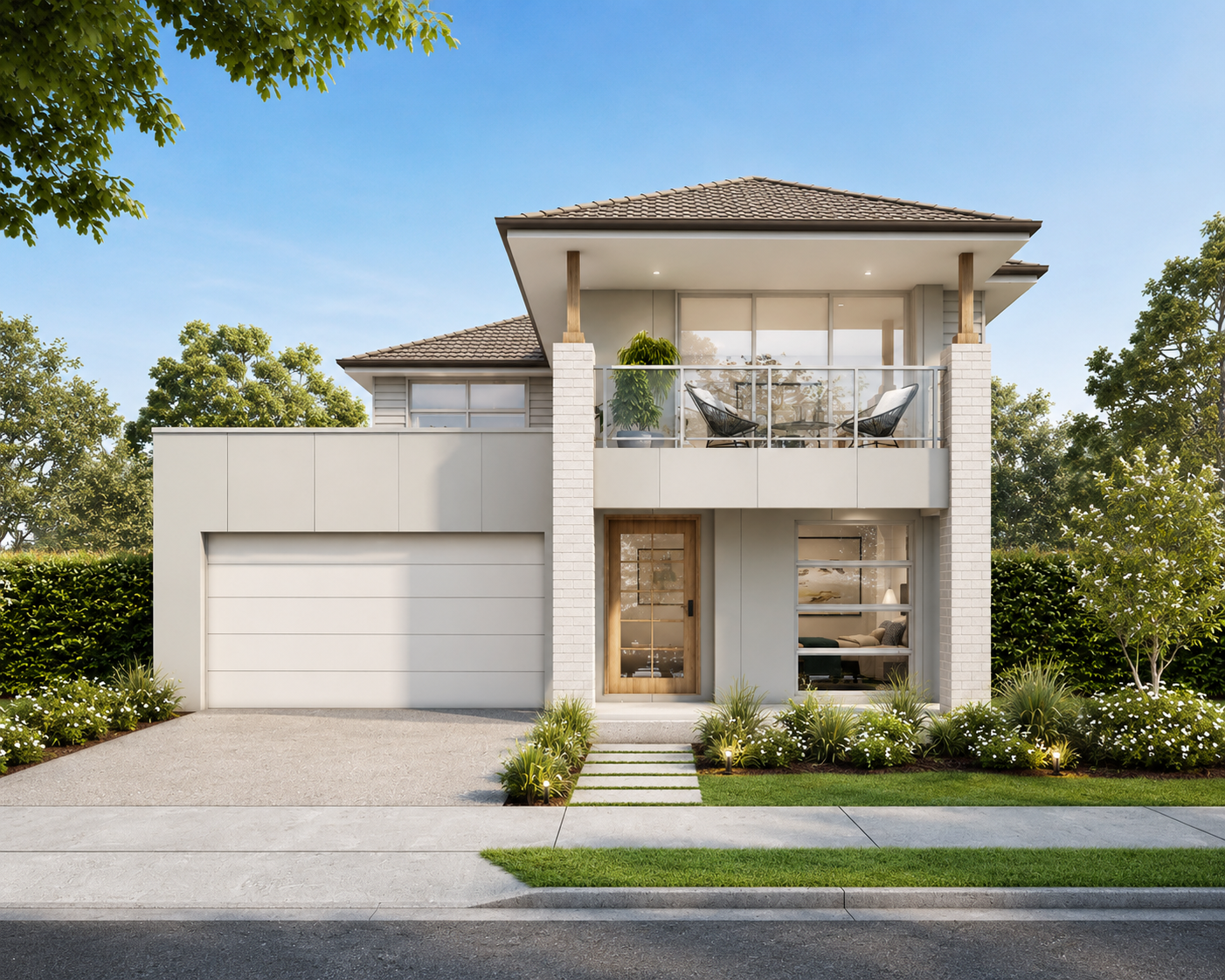

Panorama

Your New Home Selections
